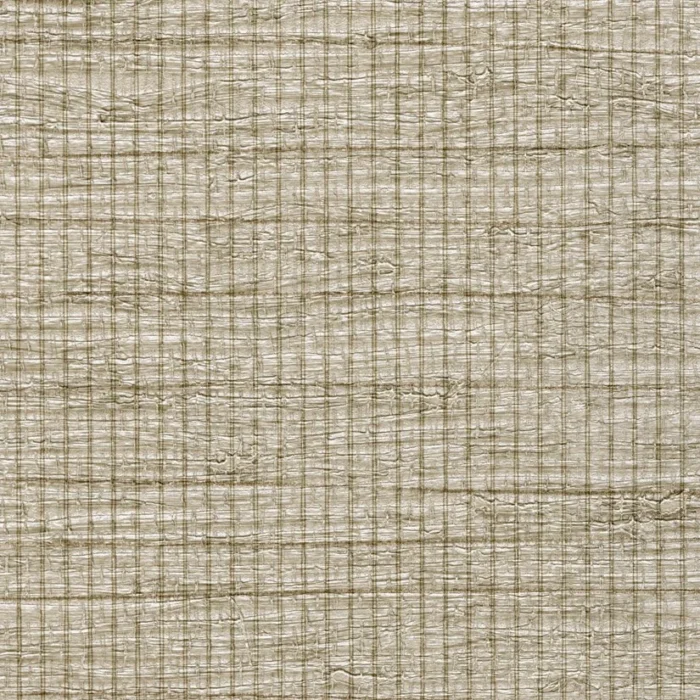

Rake
Suna · CL01-01
Design by Clodagh for Koroseal
Pricing and samples
- Type II
- Class A, ASTM E-84
- NFPA 286
- 52-54 in wide
- Non-Woven backing
Color
Suna · 12 colorways
MizuCL01-04
SunaCL01-01
ShiroCL01-03
UrokoCL01-05
UmiCL01-06
TatamiCL01-07
AkiCL01-08
JuhiCL01-09
NakamaCL01-10
InuCL01-11
KamiCL01-12- Minimum order
- 15 yards
- Order increments
- 15 yards
- Cut fee
- $3.50/yd under 30 yd
Larger quantity or a phased project? Request project pricing.
Overview
Rake is a Type II vinyl wallcovering designed by Clodagh for Koroseal. Suna is one of 12 colorways. It comes on non-woven backing, 52-54 in wide. Installation: reverse hang, random match.
Product specifications
- Brand
- Koroseal
- Designer
- Clodagh
- Collection
- Commercial Wallcoverings
- Material
- Vinyl
- Backing
- Non-Woven
- Product type
- Wallcovering
- Roll width
- 52-54 in (132-137 cm)
- Pattern match
- Reverse Hang, Random Match
- Fire rating
- Class A, ASTM E-84
- Vertical repeat
- 52 in (132 cm)
- Horizontal repeat
- 18 in (46 cm)
Source: Koroseal product page. For more detailed information see technical specifications.
Technical specifications
- Total weight
- 20.0 oz. ply (618 g. plm.)
- Weight per area
- 13.3 oz. psy (451 g. psm.)
- Roll width
- 52-54 in. (132-137 cm.)
- Nominal pattern width
- 52 in.
- Backing
- Non-Woven
- Vertical repeat
- 18 in.
- Horizontal repeat
- 52 in.
- Pattern match
- Reverse Hang, Random Match
- Tensile (minimum)
- 50 x 55 lbf (222 x 245 N)
- Tear (minimum)
- 25 x 25 lbf (111 x 111 N)
- WA spec
- WA-101, Type II
- Federal spec
- CCC-W-408D, Type II
- ASTM F-793
- Category V, Type II
Source: Rake Fact Sheet 2024.
Fire and code compliance
| Test or standard | Result | Test condition |
|---|---|---|
| NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test | Class A Rating | When applied to GRC board |
| NFPA 286 Corner Burn Test | Meets requirements for Flame Spread, Smoke Developed, and Flashover | When applied to 5/8" Type X Gypsum board with A-848-B adhesive |
| CE certification | EU classification in accordance with EN 15102:2007 + A1:2011 | As stated on the fact sheet |
| Indoor air quality | California 01350 - Meets emission requirements for schools and offices | As stated on the fact sheet |
Results apply under the stated test conditions. Source: Rake Fact Sheet 2024. Confirm requirements with your project's authority having jurisdiction.
Documents and downloads (9)
Product data
Installation and care
Sustainability
- HPD Type II Non-Woven Health Product Declaration · PDF, 99 KB ViewDownload
- VOC Emissions Type II Non-Woven VOC emissions report · PDF, 238 KB ViewDownload
- LEED Type II Non-Woven LEED contribution sheet · PDF, 36 KB ViewDownload
- EPD Type II Non-Woven Environmental Product Declaration · PDF, 1,935 KB ViewDownload
Documents published by Koroseal for this product.
Request project pricing or a sample
Tell us about your project. A commercial specialist confirms pricing, availability and lead time, and can send memo samples and technical documents.
- Pricing for your quantities and timeline
- Memo samples of this and other colorways
- Quantity take-off from your drawings
- Installation in Houston and selected Texas markets; ask about your location
