Axis II
Indigo · 1920-75
Pricing and samples
15 yd minimum order: $583.95 (includes $52.50 cut fee)
- Minimum order
- 15 yards
- Order increments
- 15 yards
- Cut fee
- $3.50/yd under 30 yd
Larger quantity or a phased project? Request project pricing.
Availability and ship date are confirmed for your quantity before we process the order. Need it by a specific date? Ask us.
Commercial team: 346 758 4012 · sales@houstonwallpapering.com
Color
Indigo · 21 colorways-
Shadow1920-90 -
Horizon1920-02 -
Rooftop1920-03 -
Coral Reef1920-04 -
Landscape1920-05 -
Sky1920-06 -
Green Space1920-07 -
Urban White1920-08 -
Ancient Lake1920-09 -
Eternity1920-20 -
Moonlight1920-25 -
Alabaster1920-29 -
Mystic1920-36 -
Whisper1920-38 -
Sincerity1920-40 -
Champagne1920-53 -
Smokey1920-57 -
Eclipse1920-59 -
Indigo1920-75 -
Daybreak1920-81 -
Sterling1920-92
- Type II
- Class A, ASTM E-84
- NFPA 286
- 52-54 in wide
- Non-Woven backing
Estimate yardage
Estimate only. Assumes 51 in usable width per drop, no vertical repeat, 4 in trim per drop, and no deductions for doors or windows. We confirm quantities from your drawings: send them with a quote request.
Overview

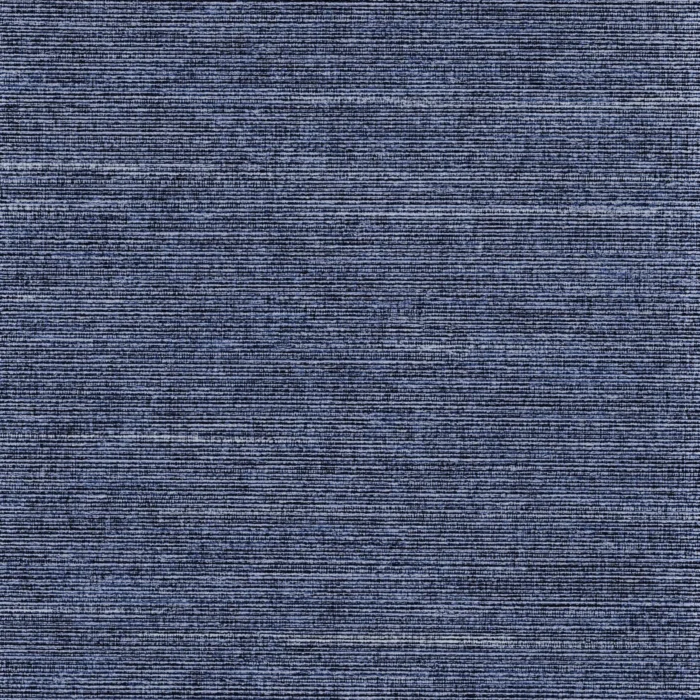

Axis II is a Type II vinyl wallcovering by Koroseal. Indigo is one of 21 colorways. It comes on non-woven backing, 52-54 in wide. Installation: reverse hang, random match.
Product specifications
- Brand
- Koroseal
- Collection
- Commercial Wallcoverings
- Material
- Vinyl
- Backing
- Non-Woven
- Product type
- Wallcovering
- Roll width
- 52-54 in (132-137 cm)
- Pattern match
- Reverse Hang, Random Match
- Fire rating
- Class A, ASTM E-84
Source: Koroseal product page. For more detailed information see technical specifications.
Technical specifications
- Total weight
- 20 oz. ply (618 g. plm.)
- Weight per area
- 13.3 oz. psy (451 g. psm.)
- Roll width
- 52-54 in. (132-137 cm.)
- Nominal pattern width
- 51 in.
- Backing
- Non-Woven
- Vertical repeat
- N/A
- Horizontal repeat
- N/A
- Pattern match
- Reverse Hang, Random Match
- Tensile (minimum)
- 50 x 55 lbf (222 x 245 N)
- Tear (minimum)
- 25 x 25 lbf (111 x 111 N)
- WA spec
- WA-101, Type II
- Federal spec
- CCC-W-408D, Type II
- ASTM F-793
- Category V, Type II
Source: Axis II Fact Sheet 2024.
Fire and code compliance
| Test or standard | Result | Test condition |
|---|---|---|
| NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test | Class A Rating | When applied to GRC board with A-848-B adhesive |
| NFPA 286 Corner Burn Test | Meets requirements for Flame Spread, Smoke Developed, and Flashover | When applied to 5/8" Type X Gypsum board with A-848-B adhesive |
| CE certification | EU classification in accordance with EN 15102:2007 + A1:2011 | As stated on the fact sheet |
| Indoor air quality | California 01350 - Meets emission requirements for schools and offices | As stated on the fact sheet |
Results apply under the stated test conditions. Source: Axis II Fact Sheet 2024. Confirm requirements with your project's authority having jurisdiction.
Documents and downloads (9)
Product data
Installation and care
Sustainability
- HPD Type II Non-Woven Health Product Declaration · PDF, 99 KB ViewDownload
- VOC Emissions Type II Non-Woven VOC emissions report · PDF, 238 KB ViewDownload
- LEED Type II Non-Woven LEED contribution sheet · PDF, 36 KB ViewDownload
- EPD Type II Non-Woven Environmental Product Declaration · PDF, 1,935 KB ViewDownload
Documents published by Koroseal for this product.
Questions about Axis II
- Is Axis II a Type II wallcovering?
- Yes. Axis II is a Type II commercial wallcovering (WA-101, Type II; CCC-W-408D, Type II; ASTM F-793 Category V, Type II), the duty class used for corridors, offices, healthcare and hospitality.
- What is the fire rating of Axis II?
- NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test: Class A Rating (When applied to GRC board with A-848-B adhesive). NFPA 286 Corner Burn Test: Meets requirements for Flame Spread, Smoke Developed, and Flashover (When applied to 5/8" Type X Gypsum board with A-848-B adhesive). Results apply under the test conditions shown on the Koroseal fact sheet.
- How is Axis II Indigo sold and what is the minimum order?
- It is 52-54 in (132-137 cm) wide and is sold by the yard: minimum 15 yards, in increments of 15 yards, at $35.43 per yard. Orders under 30 yards include a $3.50 per yard cut fee, so the minimum order of 15 yards is $583.95 before tax.
- Can I get a sample of Axis II Indigo?
- Yes. Order a sample on this page, or add several colorways to your project list and add all their samples to the cart at once.
- How many colors does Axis II come in?
- Axis II comes in 21 colorways, including Shadow, Horizon, Rooftop, Coral Reef, Landscape, Sky, Green Space, Urban White, Ancient Lake, Eternity, Moonlight, Alabaster.
- What technical documents are available for Axis II?
- This page includes the documents Koroseal publishes for it: Wallcovering Architectural Specification 09-72-00, Axis II Fact Sheet 2024, Wallcovering Cleaning Instructions, Wallcovering Hanging Instructions Reversible, HPD Type II Non-Woven, VOC Emissions Type II Non-Woven, LEED Type II Non-Woven, EPD Type II Non-Woven, Koroseal Limited Warranty.
Request a quote for Axis II
Tell us about your project. A commercial specialist confirms pricing, availability and lead time, and can send memo samples and technical documents.
- Pricing for your quantities and timeline
- Several materials? Add them to your project list and request one quote
- Quantity take-off from your drawings
- Installation in Houston and selected Texas markets; ask about your location
