Is Rake a Type II wallcovering?

Yes. Koroseal documents Rake as a Type II commercial wallcovering; see the fact sheet below for the specification references.

What is the fire rating of Rake?

NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test: Class A Rating (When applied to GRC board). Confirm requirements with your authority having jurisdiction.

How many colorways does Rake have?

12: Mizu, Suna, Ishi, Shiro, Uroko, Umi, Tatami, Aki, Juhi, Nakama, Inu, Kami.

How is Rake priced and ordered?

By the yard: from $42.44 per yard, 15 yard minimum in increments of 15 yards; orders under 30 yards include a $3.50 per yard cut fee. Each colorway page shows its exact price.

Koroseal / Type II wallcovering

Rake

12 colorways · Vinyl

Design by Clodagh for Koroseal

Type II
Class A, ASTM E-84
NFPA 286
52-54 in wide
Non-Woven backing

From $42.44 per yard · 15 yd minimum

Choose a colorway Request a quote Fact sheet (PDF)

Rake is a Type II vinyl wallcovering designed by Clodagh for Koroseal. It comes on non-woven backing, 52-54 in wide. Installation: reverse hang, random match.

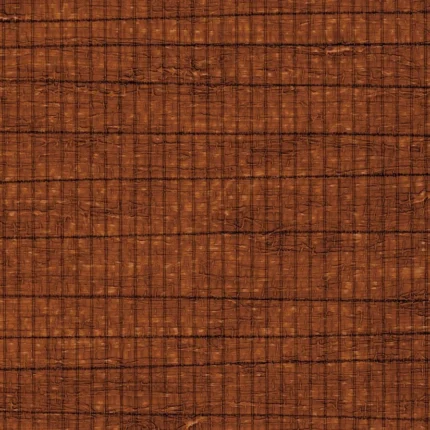

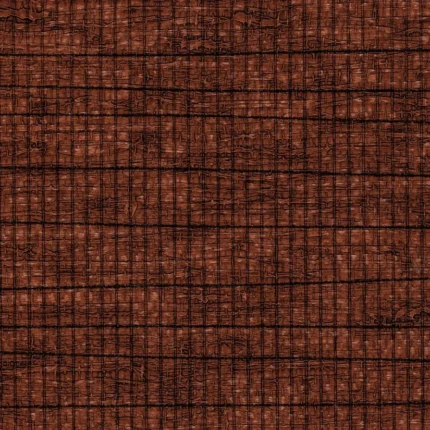

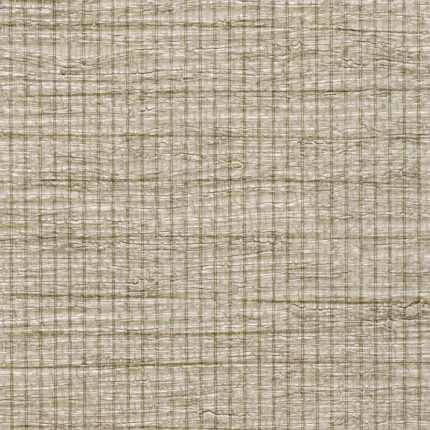

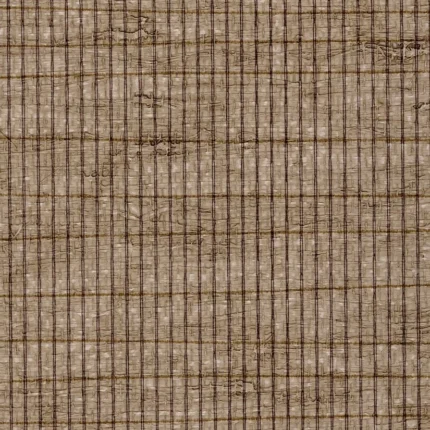

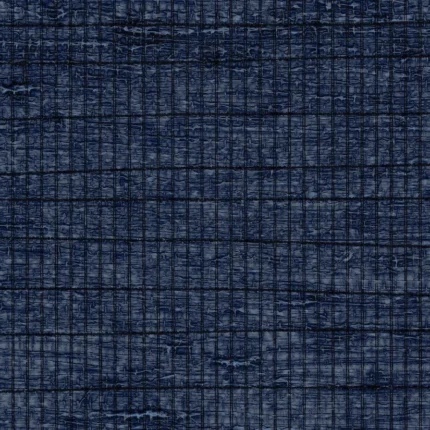

Rake colorways

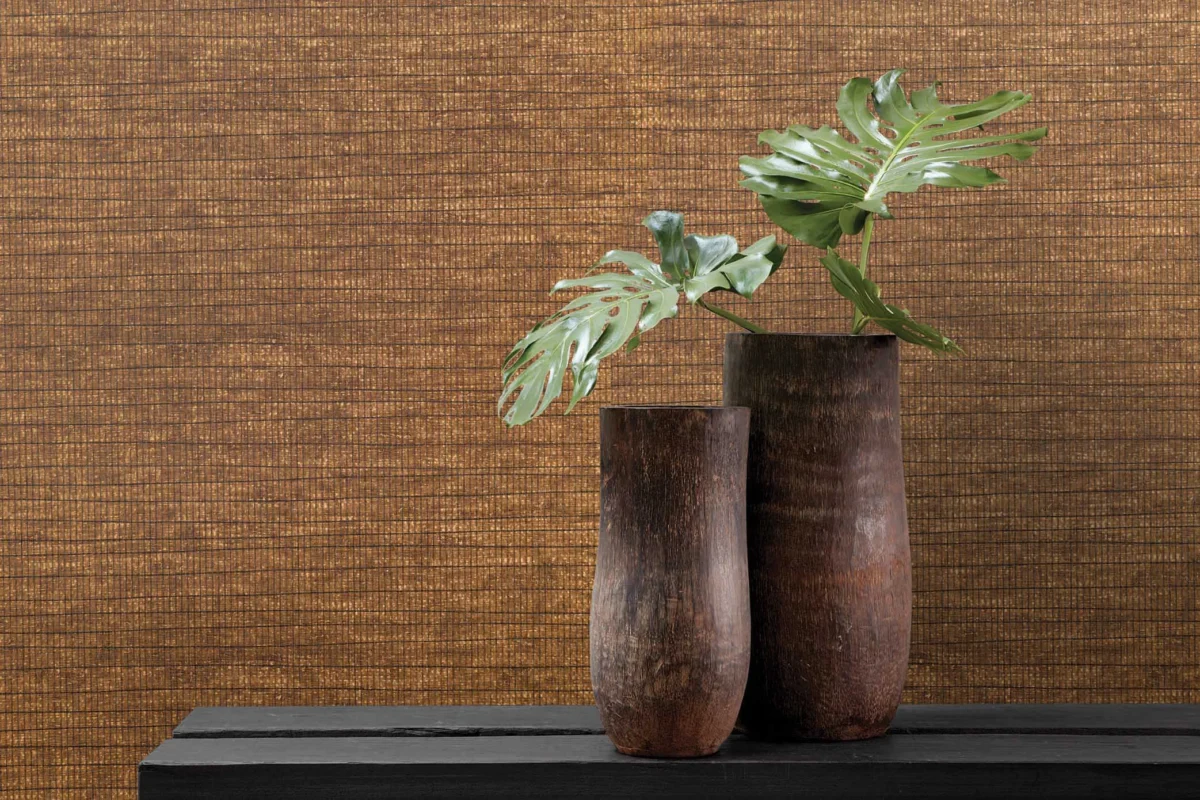

Rake wallcovering, shown in Juhi — Shown: Juhi

Specifications

Designer: Clodagh
Collection: Commercial Wallcoverings
Material: Vinyl
Backing: Non-Woven
Product type: Wallcovering
Roll width: 52-54 in (132-137 cm)
Pattern match: Reverse Hang, Random Match
Fire rating: Class A, ASTM E-84
Vertical repeat: 52 in (132 cm)
Horizontal repeat: 18 in (46 cm)
Total weight: 20.0 oz. ply (618 g. plm.)
Weight per area: 13.3 oz. psy (451 g. psm.)
Nominal pattern width: 52 in.
Tensile (minimum): 50 x 55 lbf (222 x 245 N)
Tear (minimum): 25 x 25 lbf (111 x 111 N)
WA spec: WA-101, Type II
Federal spec: CCC-W-408D, Type II
ASTM F-793: Category V, Type II

Source: Koroseal product pages and Rake Fact Sheet 2024. Only values identical for all 12 colorways are shown here.

Fire and code compliance

Test or standard	Result	Test condition
NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test	Class A Rating	When applied to GRC board
NFPA 286 Corner Burn Test	Meets requirements for Flame Spread, Smoke Developed, and Flashover	When applied to 5/8" Type X Gypsum board with A-848-B adhesive
CE certification	EU classification in accordance with EN 15102:2007 + A1:2011	As stated on the fact sheet
Indoor air quality	California 01350 - Meets emission requirements for schools and offices	As stated on the fact sheet

Results apply under the stated test conditions. Confirm requirements with your project's authority having jurisdiction. How to read fire test data.

Documents and downloads

Product data

Wallcovering Architectural Specification 09-72-00PDF, 46 KB View Download
Rake Fact Sheet 2024PDF, 485 KB View Download

Installation and care

Wallcovering Cleaning InstructionsPDF, 51 KB View Download
Wallcovering Hanging Instructions ReversiblePDF, 142 KB View Download

Sustainability

HPD Type II Non-WovenPDF, 99 KB View Download
VOC Emissions Type II Non-WovenPDF, 238 KB View Download
LEED Type II Non-WovenPDF, 36 KB View Download
EPD Type II Non-WovenPDF, 1,935 KB View Download

Warranty

Koroseal Limited WarrantyPDF, 107 KB View Download

Questions about Rake

Is Rake a Type II wallcovering?: Yes. Koroseal documents Rake as a Type II commercial wallcovering; see the fact sheet below for the specification references.
What is the fire rating of Rake?: NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test: Class A Rating (When applied to GRC board). Confirm requirements with your authority having jurisdiction.
How many colorways does Rake have?: 12: Mizu, Suna, Ishi, Shiro, Uroko, Umi, Tatami, Aki, Juhi, Nakama, Inu, Kami.
How is Rake priced and ordered?: By the yard: from $42.44 per yard, 15 yard minimum in increments of 15 yards; orders under 30 yards include a $3.50 per yard cut fee. Each colorway page shows its exact price.

Project pricing

Request a quote for Rake

Tell us the colorways and quantities. To quote several colorways or patterns together, add them to your project list.
