Koroseal / Type II wallcovering
Wexley Plaid
8 colorways · Vinyl
- Type II
- Class A, ASTM E-84
- NFPA 286
- 52-54 in wide
- Non-Woven backing
From $63.92 per yard · 15 yd minimum
Wexley Plaid is a Type II vinyl wallcovering by Koroseal. It comes on non-woven backing, 52-54 in wide. Installation: non-reverse hang, straight match.
Wexley Plaid colorways
CroftKL03-01

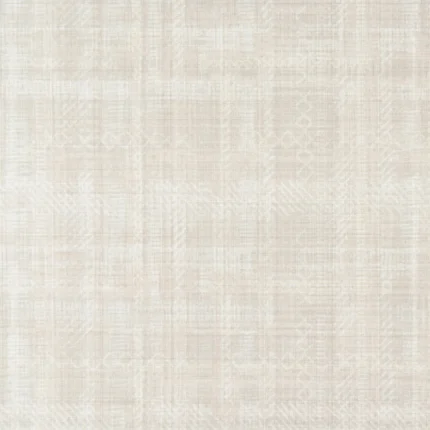

ManorKL03-02
EstateKL03-03
HeathKL03-04
GlenKL03-05
ParklandKL03-06
MoorKL03-07
ValeKL03-08
Specifications
- Collection
- Commercial Wallcoverings
- Material
- Vinyl
- Backing
- Non-Woven
- Product type
- Wallcovering
- Roll width
- 52-54 in (132-137 cm)
- Pattern match
- Non-Reverse Hang, Straight Match
- Fire rating
- Class A, ASTM E-84
- Vertical repeat
- 24 in (61 cm)
- Horizontal repeat
- 52 in (132 cm)
- Total weight
- 20 oz. ply (618 g. plm.)
- Weight per area
- 13.3 oz. psy (451 g. psm.)
- Nominal pattern width
- 51 in.
- Tensile (minimum)
- 50 x 55 lbf (222 x 245 N)
- Tear (minimum)
- 25 x 25 lbf (111 x 111 N)
- WA spec
- WA-101, Type II
- Federal spec
- CCC-W-408D, Type II
- ASTM F-793
- Category V, Type II
Source: Koroseal product pages and Wexley Plaid Fact Sheet. Only values identical for all 8 colorways are shown here.
Fire and code compliance
| Test or standard | Result | Test condition |
|---|---|---|
| NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test | Class A Rating | When applied to GRC board with A-848-B adhesive |
| NFPA 286 Corner Burn Test | Meets requirements for Flame Spread, Smoke Developed, & Flashover | When applied to 5/8" Type X Gypsum board with A-848-B adhesive |
| CE certification | EU classification in accordance with EN 15102:2007 + A1:2011 | As stated on the fact sheet |
| Indoor air quality | California 01350 - Meets emission requirements for schools and offices | As stated on the fact sheet |
Results apply under the stated test conditions. Confirm requirements with your project's authority having jurisdiction. How to read fire test data.
Documents and downloads
Product data
Installation and care
Sustainability
Questions about Wexley Plaid
- Is Wexley Plaid a Type II wallcovering?
- Yes. Koroseal documents Wexley Plaid as a Type II commercial wallcovering; see the fact sheet below for the specification references.
- What is the fire rating of Wexley Plaid?
- NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test: Class A Rating (When applied to GRC board with A-848-B adhesive). Confirm requirements with your authority having jurisdiction.
- How many colorways does Wexley Plaid have?
- 8: Croft, Manor, Estate, Heath, Glen, Parkland, Moor, Vale.
- How is Wexley Plaid priced and ordered?
- By the yard: from $63.92 per yard, 15 yard minimum in increments of 15 yards; orders under 30 yards include a $3.50 per yard cut fee. Each colorway page shows its exact price.
Project pricing
Request a quote for Wexley Plaid
Tell us the colorways and quantities. To quote several colorways or patterns together, add them to your project list.
