Koroseal / Type II wallcovering
Lunar Fold
15 colorways · Vinyl
Design by Patty Madden for Koroseal
- Type II
- Class A, ASTM E-84
- NFPA 286
- 52-54 in wide
- Non-Woven backing
From $63.92 per yard · 15 yd minimum
Lunar Fold is a Type II vinyl wallcovering designed by Patty Madden for Koroseal. It comes on non-woven backing, 52-54 in wide. Installation: non-reverse hang, random match.
Lunar Fold colorways
Gravity GreyPM02-15
$63.92 / yd

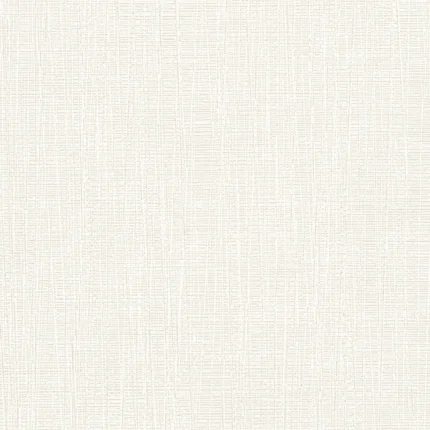

Alabaster MoonPM02-01
$63.92 / yd

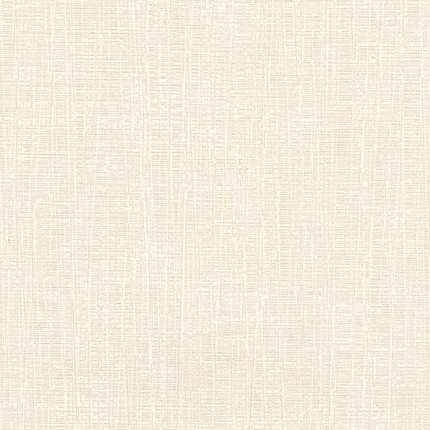

Pale OrbitPM02-02
$63.92 / yd

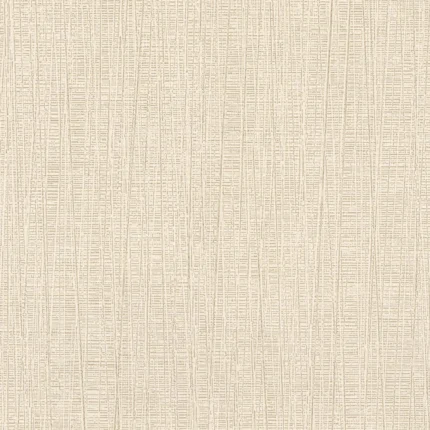

Opal DriftPM02-03
$63.92 / yd
Nebula InkPM02-04
$63.92 / yd
Ashen BeamPM02-05
$63.92 / yd
Crater MistPM02-06
$63.92 / yd
Dusted HaloPM02-07
$63.92 / yd
Night TidePM02-08
$63.92 / yd
StardustPM02-09
$63.92 / yd
Sol RadiancePM02-10
$63.92 / yd
GlintstonePM02-11
$63.92 / yd
Obsidian GlowPM02-12
$63.92 / yd
Celeste BlushPM02-13
$63.92 / yd
Selenite SheenPM02-14
$63.92 / yd
Specifications
- Designer
- Patty Madden
- Collection
- Commercial Wallcoverings
- Material
- Vinyl
- Backing
- Non-Woven
- Product type
- Wallcovering
- Roll width
- 52-54 in (132-137 cm)
- Pattern match
- Non-Reverse Hang, Random Match
- Fire rating
- Class A, ASTM E-84
- Horizontal repeat
- 52 in (132 cm)
- Total weight
- 20 oz. ply (618 g. plm.)
- Weight per area
- 13.3 oz. psy (451 g. psm.)
- Nominal pattern width
- 51 in.
- Vertical repeat
- N/A
- Tensile (minimum)
- 50 x 55 lbf (222 x 245 N)
- Tear (minimum)
- 25 x 25 lbf (111 x 111 N)
- WA spec
- WA-101, Type II
- Federal spec
- CCC-W-408D, Type II
- ASTM F-793
- Category V, Type II
Source: Koroseal product pages and Lunar Fold Fact Sheet. Only values identical for all 15 colorways are shown here.
Fire and code compliance
| Test or standard | Result | Test condition |
|---|---|---|
| NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test | Class A Rating | When applied to GRC board with A-848-B adhesive |
| NFPA 286 Corner Burn Test | Meets requirements for Flame Spread, Smoke Developed, & Flashover | When applied to 5/8" Type X Gypsum board with A-848-B adhesive |
| CE certification | EU classification in accordance with EN 15102:2007 + A1:2011 | As stated on the fact sheet |
| Indoor air quality | California 01350 - Meets emission requirements for schools and offices | As stated on the fact sheet |
Results apply under the stated test conditions. Confirm requirements with your project's authority having jurisdiction. How to read fire test data.
Documents and downloads
Product data
Installation and care
Sustainability
Questions about Lunar Fold
- Is Lunar Fold a Type II wallcovering?
- Yes. Koroseal documents Lunar Fold as a Type II commercial wallcovering; see the fact sheet below for the specification references.
- What is the fire rating of Lunar Fold?
- NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test: Class A Rating (When applied to GRC board with A-848-B adhesive). Confirm requirements with your authority having jurisdiction.
- How many colorways does Lunar Fold have?
- 15: Gravity Grey, Alabaster Moon, Pale Orbit, Opal Drift, Nebula Ink, Ashen Beam, Crater Mist, Dusted Halo, Night Tide, Stardust, Sol Radiance, Glintstone, Obsidian Glow, Celeste Blush, Selenite Sheen.
- How is Lunar Fold priced and ordered?
- By the yard: from $63.92 per yard, 15 yard minimum in increments of 15 yards; orders under 30 yards include a $3.50 per yard cut fee. Each colorway page shows its exact price.
Project pricing
Request a quote for Lunar Fold
Tell us the colorways and quantities. To quote several colorways or patterns together, add them to your project list.
