Koroseal / Type II wallcovering
Kinetic Ridge
15 colorways · Vinyl
Design by Patty Madden for Koroseal
- Type II
- Class A, ASTM E-84
- NFPA 286
- 52-54 in wide
- Woven backing
From $63.92 per yard · 15 yd minimum

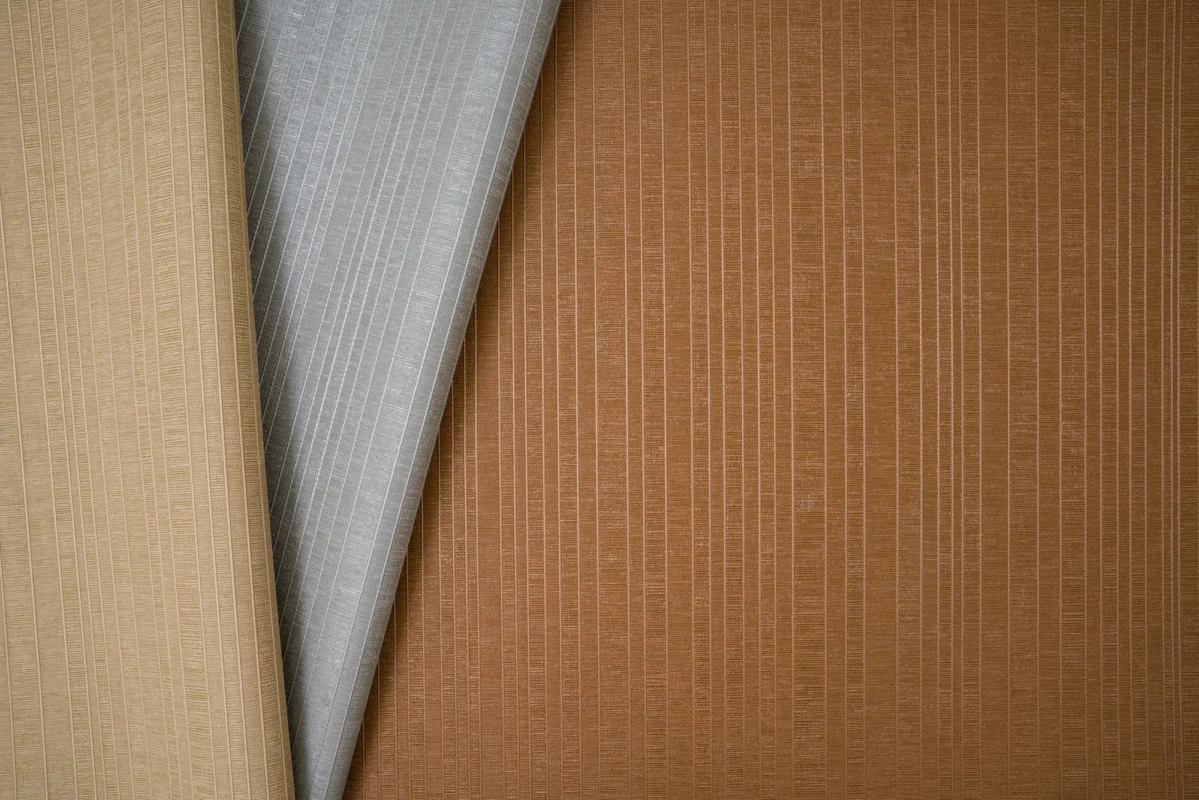

Kinetic Ridge is a Type II vinyl wallcovering designed by Patty Madden for Koroseal. It comes on woven backing, 52-54 in wide. Installation: non-reverse hang, random match.
Kinetic Ridge colorways
MoltenPM07-08
$63.92 / yd
WhisperPM07-01
$63.92 / yd

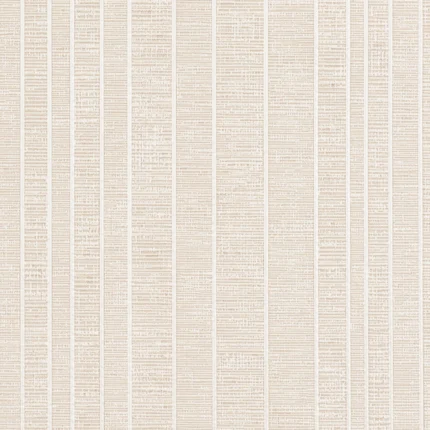

FizzPM07-02
$63.92 / yd
BlurPM07-03
$63.92 / yd
SparkPM07-04
$63.92 / yd
GlimmerPM07-05
$63.92 / yd
SplashPM07-06
$63.92 / yd
BumblePM07-07
$63.92 / yd
FlashPM07-09
$63.92 / yd
MagneticPM07-10
$63.92 / yd

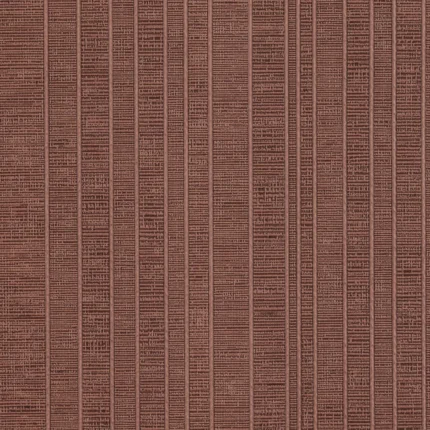

DynamicPM07-11
$63.92 / yd

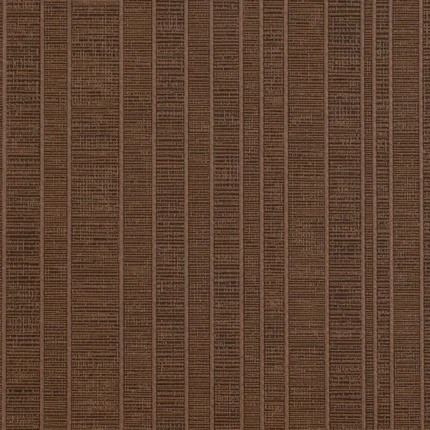

DriftPM07-12
$63.92 / yd
CurrentPM07-13
$63.92 / yd
RisePM07-14
$63.92 / yd
SimmerPM07-15
$63.92 / yd
Specifications
- Designer
- Patty Madden
- Collection
- Commercial Wallcoverings
- Material
- Vinyl
- Backing
- Woven
- Product type
- Wallcovering
- Roll width
- 52-54 in (132-137 cm)
- Pattern match
- Non-Reverse Hang, Random Match
- Fire rating
- Class A, ASTM E-84
- Total weight
- 20 oz. ply (618 g. plm.)
- Weight per area
- 13.3 oz. psy (451 g. psm.)
- Nominal pattern width
- 52 in.
- Vertical repeat
- N/A
- Horizontal repeat
- N/A
- Tensile (minimum)
- 50 x 55 lbf (222 x 245 N)
- Tear (minimum)
- 25 x 25 lbf (111 x 111 N)
- WA spec
- WA-101, Type II
- Federal spec
- CCC-W-408D, Type II
- ASTM F-793
- Category V, Type II
Source: Koroseal product pages and Kinetic Ridge Fact Sheet. Only values identical for all 15 colorways are shown here.
Fire and code compliance
| Test or standard | Result | Test condition |
|---|---|---|
| NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test | Class A Rating | When applied to GRC board with A-848-B adhesive |
| NFPA 286 Corner Burn Test | Meets requirements for Flame Spread, Smoke Developed, & Flashover | When applied to 5/8" Type X Gypsum board with A-848-B adhesive |
| CE certification | EU classification in accordance with EN 15102:2007 + A1:2011 | As stated on the fact sheet |
| Indoor air quality | California 01350 - Meets emission requirements for schools and offices | As stated on the fact sheet |
Results apply under the stated test conditions. Confirm requirements with your project's authority having jurisdiction. How to read fire test data.
Documents and downloads
Product data
Installation and care
Sustainability
Questions about Kinetic Ridge
- Is Kinetic Ridge a Type II wallcovering?
- Yes. Koroseal documents Kinetic Ridge as a Type II commercial wallcovering; see the fact sheet below for the specification references.
- What is the fire rating of Kinetic Ridge?
- NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test: Class A Rating (When applied to GRC board with A-848-B adhesive). Confirm requirements with your authority having jurisdiction.
- How many colorways does Kinetic Ridge have?
- 15: Molten, Whisper, Fizz, Blur, Spark, Glimmer, Splash, Bumble, Flash, Magnetic, Dynamic, Drift, Current, Rise, Simmer.
- How is Kinetic Ridge priced and ordered?
- By the yard: from $63.92 per yard, 15 yard minimum in increments of 15 yards; orders under 30 yards include a $3.50 per yard cut fee. Each colorway page shows its exact price.
