Koroseal / Type II wallcovering
Grid Shift
15 colorways · Vinyl
Design by Patty Madden for Koroseal
- Type II
- Class A, ASTM E-84
- NFPA 286
- 52-54 in wide
- Woven backing
From $63.92 per yard · 15 yd minimum
Grid Shift is a Type II vinyl wallcovering designed by Patty Madden for Koroseal. It comes on woven backing, 52-54 in wide. Installation: non-reverse hang, space stripes.
Grid Shift colorways
CalcitePM10-01
$63.92 / yd

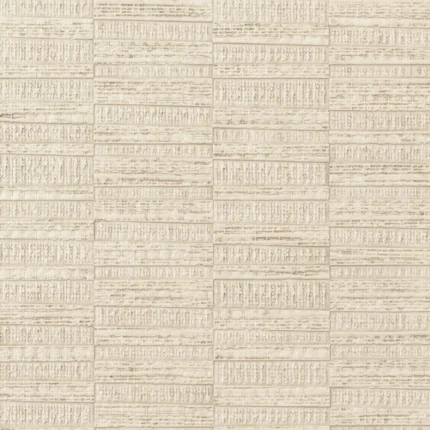

Soft TalkPM10-02
$63.92 / yd

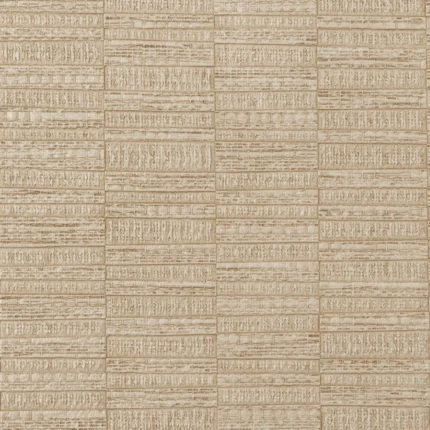

OatfieldPM10-03
$63.92 / yd
Brushed OchrePM10-04
$63.92 / yd
Alabaster VeilPM10-05
$63.92 / yd

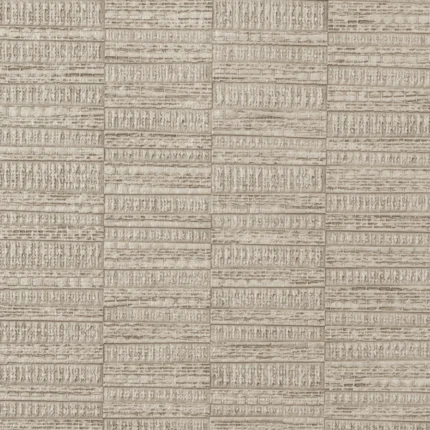

QuarryPM10-06
$63.92 / yd
Auric OrePM10-07
$63.92 / yd
Earthen WeavePM10-08
$63.92 / yd
AurelinePM10-09
$63.92 / yd

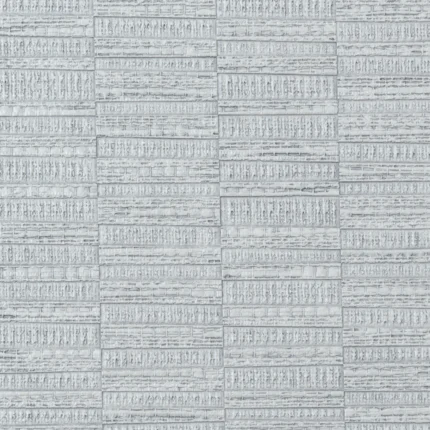

Mineral WashPM10-10
$63.92 / yd

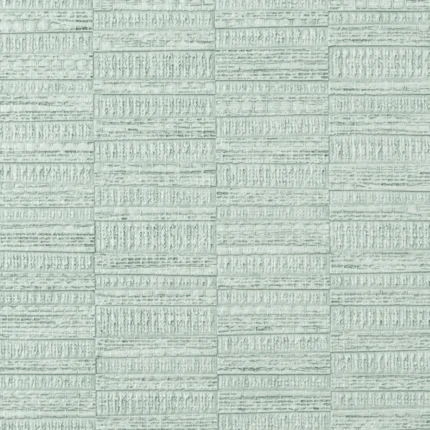

RiverstonePM10-11
$63.92 / yd

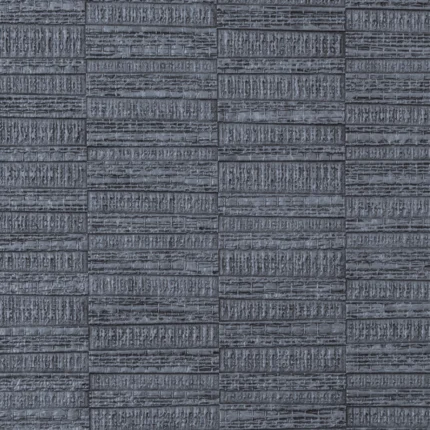

Midnight MineralPM10-12
$63.92 / yd

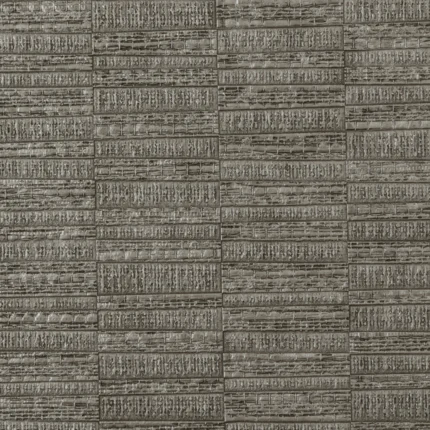

Iron StrattaPM10-13
$63.92 / yd

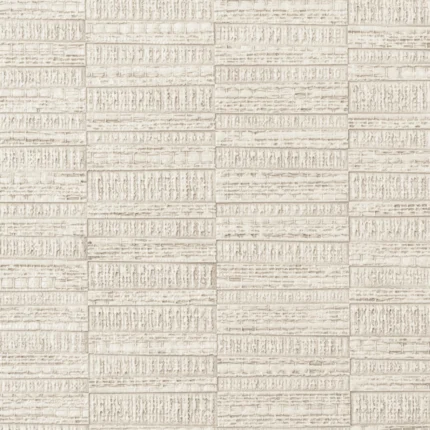

PumicePM10-14
$63.92 / yd

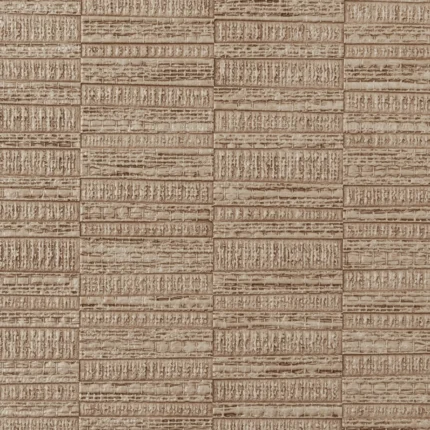

IronwoodPM10-15
$63.92 / yd
Specifications
- Designer
- Patty Madden
- Collection
- Commercial Wallcoverings
- Material
- Vinyl
- Backing
- Woven
- Product type
- Wallcovering
- Roll width
- 52-54 in (132-137 cm)
- Pattern match
- Non-Reverse Hang, Space Stripes
- Fire rating
- Class A, ASTM E-84
- Total weight
- 20 oz. ply (618 g. plm.)
- Weight per area
- 13.3 oz. psy (451 g. psm.)
- Nominal pattern width
- 51 in.
- Vertical repeat
- N/A
- Horizontal repeat
- N/A
- Tensile (minimum)
- 50 x 55 lbf (222 x 245 N)
- Tear (minimum)
- 25 x 25 lbf (111 x 111 N)
- WA spec
- WA-101, Type II
- Federal spec
- CCC-W-408D, Type II
- ASTM F-793
- Category V, Type II
Source: Koroseal product pages and Grid Shift Fact Sheet. Only values identical for all 15 colorways are shown here.
Fire and code compliance
| Test or standard | Result | Test condition |
|---|---|---|
| NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test | Class A Rating | When applied to GRC board with A-848-B adhesive |
| NFPA 286 Corner Burn Test | Meets requirements for Flame Spread, Smoke Developed, & Flashover | When applied to 5/8" Type X Gypsum board with A-848-B adhesive |
| CE certification | EU classification in accordance with EN 15102:2007 + A1:2011 | As stated on the fact sheet |
| Indoor air quality | California 01350 - Meets emission requirements for schools and offices | As stated on the fact sheet |
Results apply under the stated test conditions. Confirm requirements with your project's authority having jurisdiction. How to read fire test data.
Documents and downloads
Product data
Installation and care
Sustainability
Questions about Grid Shift
- Is Grid Shift a Type II wallcovering?
- Yes. Koroseal documents Grid Shift as a Type II commercial wallcovering; see the fact sheet below for the specification references.
- What is the fire rating of Grid Shift?
- NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test: Class A Rating (When applied to GRC board with A-848-B adhesive). Confirm requirements with your authority having jurisdiction.
- How many colorways does Grid Shift have?
- 15: Calcite, Soft Talk, Oatfield, Brushed Ochre, Alabaster Veil, Quarry, Auric Ore, Earthen Weave, Aureline, Mineral Wash, Riverstone, Midnight Mineral, Iron Stratta, Pumice, Ironwood.
- How is Grid Shift priced and ordered?
- By the yard: from $63.92 per yard, 15 yard minimum in increments of 15 yards; orders under 30 yards include a $3.50 per yard cut fee. Each colorway page shows its exact price.
Project pricing
Request a quote for Grid Shift
Tell us the colorways and quantities. To quote several colorways or patterns together, add them to your project list.
