Koroseal / Type II wallcovering
Celestial Loom
15 colorways · Vinyl
Design by Patty Madden for Koroseal
- Type II
- Class A, ASTM E-84
- NFPA 286
- 52-54 in wide
- Woven backing
From $63.92 per yard · 15 yd minimum
Celestial Loom is a Type II vinyl wallcovering designed by Patty Madden for Koroseal. It comes on woven backing, 52-54 in wide. Installation: non-reverse hang, straight match.
Celestial Loom colorways
Silken AzurePM05-12
$63.92 / yd
Threaded PearlPM05-01
$63.92 / yd
Halo DunePM05-02
$63.92 / yd
MoonlacedPM05-03
$63.92 / yd

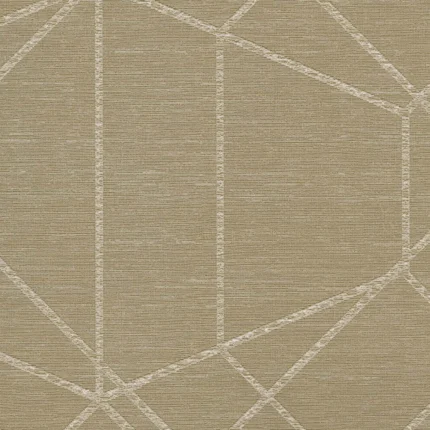

StonebeamPM05-04
$63.92 / yd
Ecliptic VeilPM05-05
$63.92 / yd
Echo HazePM05-06
$63.92 / yd

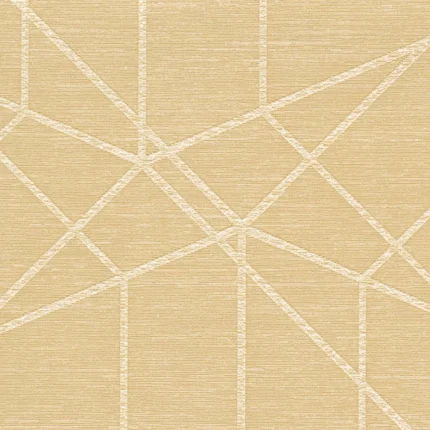

SolmerePM05-07
$63.92 / yd
Char MeshPM05-08
$63.92 / yd
StarlacedPM05-09
$63.92 / yd
Lunar BronzePM05-10
$63.92 / yd
ThreadflamePM05-11
$63.92 / yd
Redburn WeftPM05-13
$63.92 / yd
FogweftPM05-14
$63.92 / yd
Astral SmokePM05-15
$63.92 / yd
Specifications
- Designer
- Patty Madden
- Collection
- Commercial Wallcoverings
- Material
- Vinyl
- Backing
- Woven
- Product type
- Wallcovering
- Roll width
- 52-54 in (132-137 cm)
- Pattern match
- Non-Reverse Hang, Straight Match
- Fire rating
- Class A, ASTM E-84
- Vertical repeat
- 38.7500 in (98 cm)
- Horizontal repeat
- 52 in (132 cm)
- Total weight
- 20 oz. ply (618 g. plm.)
- Weight per area
- 13.3 oz. psy (451 g. psm.)
- Nominal pattern width
- 51 in.
- Tensile (minimum)
- 50 x 55 lbf (222 x 245 N)
- Tear (minimum)
- 25 x 25 lbf (111 x 111 N)
- WA spec
- WA-101, Type II
- Federal spec
- CCC-W-408D, Type II
- ASTM F-793
- Category V, Type II
Source: Koroseal product pages and Celestial Loom Fact Sheet. Only values identical for all 15 colorways are shown here.
Fire and code compliance
| Test or standard | Result | Test condition |
|---|---|---|
| NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test | Class A Rating | When applied to GRC board with A-848-B adhesive |
| NFPA 286 Corner Burn Test | Meets requirements for Flame Spread, Smoke Developed, & Flashover | When applied to 5/8" Type X Gypsum board with A-848-B adhesive |
| CE certification | EU classification in accordance with EN 15102:2007 + A1:2011 | As stated on the fact sheet |
| Indoor air quality | California 01350 - Meets emission requirements for schools and offices | As stated on the fact sheet |
Results apply under the stated test conditions. Confirm requirements with your project's authority having jurisdiction. How to read fire test data.
Documents and downloads
Product data
Sustainability
Questions about Celestial Loom
- Is Celestial Loom a Type II wallcovering?
- Yes. Koroseal documents Celestial Loom as a Type II commercial wallcovering; see the fact sheet below for the specification references.
- What is the fire rating of Celestial Loom?
- NFPA 255 (ASTM E-84, CAN S102M) Tunnel Test: Class A Rating (When applied to GRC board with A-848-B adhesive). Confirm requirements with your authority having jurisdiction.
- How many colorways does Celestial Loom have?
- 15: Silken Azure, Threaded Pearl, Halo Dune, Moonlaced, Stonebeam, Ecliptic Veil, Echo Haze, Solmere, Char Mesh, Starlaced, Lunar Bronze, Threadflame, Redburn Weft, Fogweft, Astral Smoke.
- How is Celestial Loom priced and ordered?
- By the yard: from $63.92 per yard, 15 yard minimum in increments of 15 yards; orders under 30 yards include a $3.50 per yard cut fee. Each colorway page shows its exact price.
Project pricing
Request a quote for Celestial Loom
Tell us the colorways and quantities. To quote several colorways or patterns together, add them to your project list.
